CP-ML4/CP-FS4

CP-ML4/CP-FS4 4 WAY DC POWER SPLITTER CABLE

CP-ML4/CP-FS4
Model CP-ML4/CP-FS4
Type 4 WAY DC POWER SPLITTER CABLE
Manual Connection Diagram

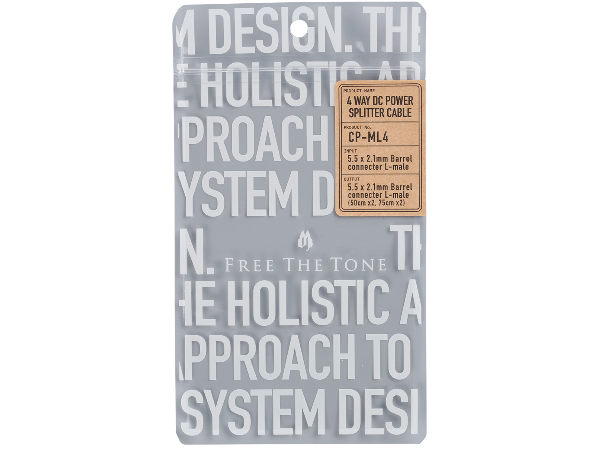

Package Sample
A power splitter cable that serially supplies 9 VDC from one AC adapter is a useful product for reducing space on your pedal board because one cable can feed power to multiple effect units. However usual daisy-chain type splitter cables have a long common section in which current runs and this is one of the causes of noise and reduced voltage. Since Free The Tone's 4-way DC power splitter cables are split at a point close to the power source, this common section is very short, allowing your effect units to be powered under ideal conditions.
CP-ML4
CP-FS4

SPECIFICATIONS

CP-ML4

  • Input end: 1 x barrel connector (5.5 x 2.1 mm, L-shape male)
  • Output end: 4 x barrel connector (5.5 x 2.1 mm, L-shape male, cables: 2 x 50 cm, 2 x 75 cm)

CP-FS4

  • Input end: 1 x barrel connector (5.5 x 2.1 mm, female)
  • Output end: 4 x barrel connector (5.5 x 2.1 mm, L-shape male, cables: 2 x 50 cm, 2 x 75 cm)
