CP-M35CV/CP-R25CV/CP-R21CV

CP-M35CV/CP-R25CV/CP-R21CV DC CONVERSION CABLE

CP-M35CV/CP-R25CV/CP-R21CV
Model CP-M35CV/CP-R25CV/CP-R21CV
Type DC CONVERSION CABLE

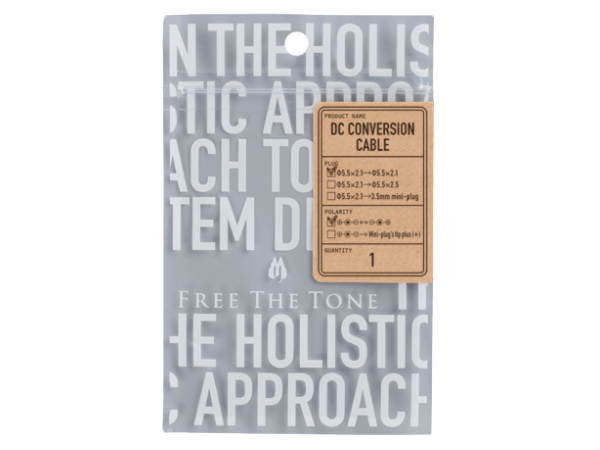

Package sample
Regarding the polarity of the DC jack commonly used in an effects unit’s power supply, in almost cases the inner center pin is “minus (–)” and the outer sleeve is “plus (+)”, with a 2.1 mm center pin diameter. Therefore, commercially available AC adapters and power supply units mainly support this specification. But there are effects units that use mini-plugs, inverted polarity “center plus”, or a ø2.5 mm center pin in the DC jack. A DC conversion cable has to be used to connect such an effects unit to a common adapter or power supply unit.

FEATURES

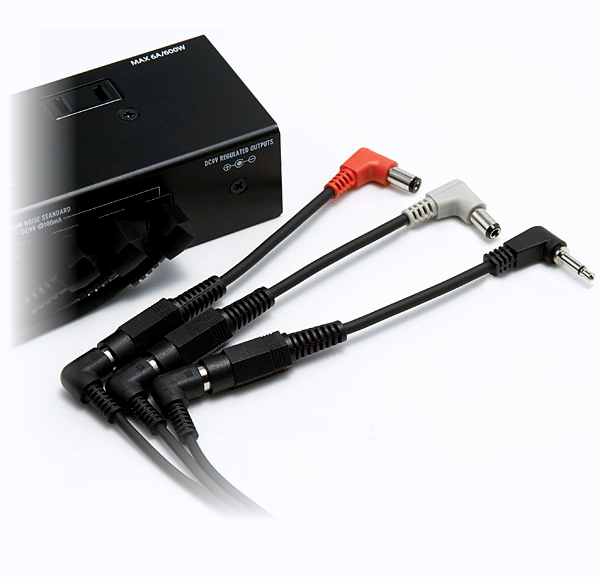

  • CP-M35CV is a conversion cable for an effects unit using a 3.5 mm mini-plug to receive electric power.
  • CP-R25CV is a polarity inverting conversion cable for an effects unit using a 5.5×2.5 mm barrel connector with center plus (+) polarity.
  • CP-R25CV can be used for Eventide® TIME FACTOR/MOD FACTOR/PITCH FACTOR/SPACE and LINE6® DL4™/MM4™/FM4™ (as of September 2015).
  • CP-R21CV is a polarity inverting conversion cable for an effects unit using a 5.5×2.1 mm barrel connector with center plus (+) polarity.

SPECIFICATIONS

CP-M35CV

  • Plug size: 5.5×2.1 mm barrel connector (female) / 3.5 mm mini-plug
  • By connecting to a DC plug with center minus (–) polarity, the mini-plug’s tip is changed to the plus (+) side.

CP-R25CV

  • Plug size: 5.5×2.1 mm barrel connector (female) / 5.5×2.5 mm barrel connector (male)
  • Converts the polarity of a DC plug from center minus (–) to center plus (+) or vice versa.

CP-R21CV

  • Plug size: 5.5×2.1 mm barrel connector (female) / 5.5×2.1 mm barrel connector (male)
  • Converts the polarity of a DC plug from center minus (–) to center plus (+) or vice versa.
